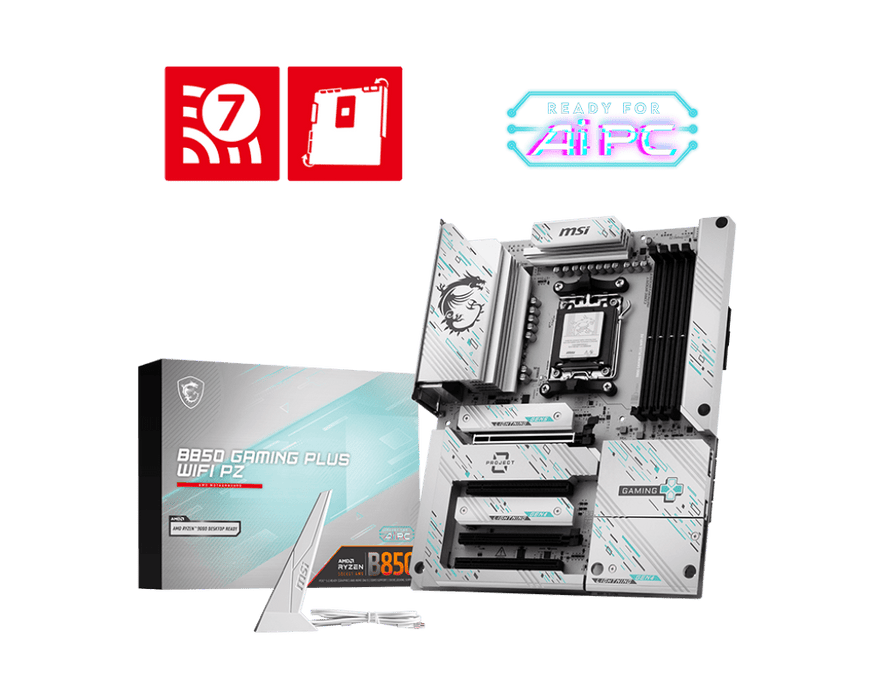

MSI B850 Gaming Plus WIFI Project Zero ATX AM5 Motherboard

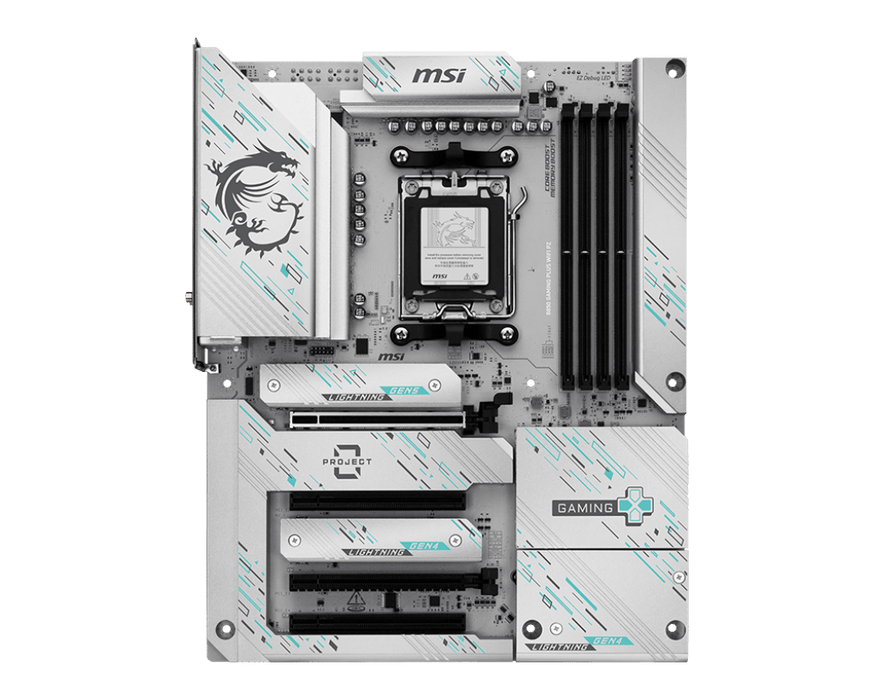

The B850 GAMING PLUS WIFI PZ moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card's aesthetic design to be fully displayed.

Back-Connect Design: Moving the connectors to the back not only keeps the front clean but also makes connector access easier and more effortless.

Easy cable management: Eliminate the step of routing the cables from front to back to lower the difficulty of cable management.

The B850 GAMING PLUS WIFI PZ motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors.

Form Factor: ATX

Socket Type: AM5

Chipset: AMD B850

With exclusive Core Boost technology and EZ OC Tuning functions, the B850 GAMING PLUS WIFI PZ is able to sustain heavy CPU power loads to support system-demanding game settings:

• Digital PWM IC
• 12 Phase Duet Rail Power System w/ P-PAK
• 2 Phase SOC Power
• 1 Phase MISC Power

Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and M.2 Shield Frozr for improved thermal dissipation.

Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A) and system fans.

Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

High-Efficiency Mode: Enabling High-Efficiency-Mode in the MSI BIOS increases memory bandwidth and reduces latency. Four different modes allow users to find out the optimal configuration based on the quality of their memory modules.

EXPO Profiles: in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 8200+ MT/s, supports AMD EXPO.

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.

1 x PCIe 5.0/4.0/3.0 x16 slot* (with Steel Armor and EZ PCIe Clip II)

1 x PCIe 4.0 x4 slot*

2 x PCIe 3.0 x1 slot

*Supports x16/x4

The B850 GAMING PLUS WIFI PZ motherboard features MSI's M.2 slots:

1 x Gen5 x4 128Gbps slot

1 x Gen4 x4 64Gbps slot

1 x Gen4 x2 32Gbps slot

The DIY Friendly designs optimize the assemble process and experience.

EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.

EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces.

EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.
