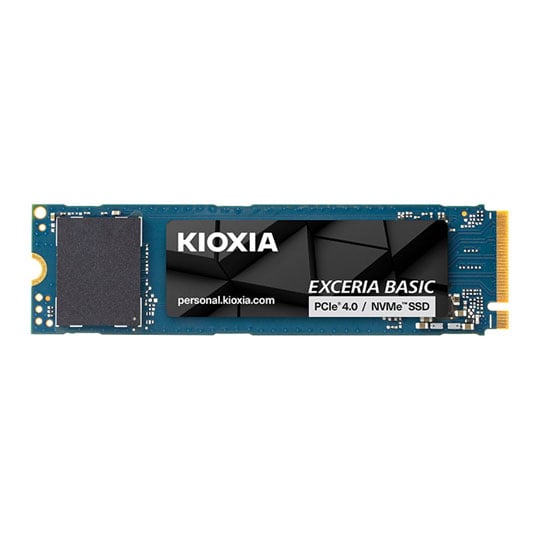

2TB Kioxia Exceria PCIe 4.0 NVMe M.2 SSD

2TB Kioxia Exceria PCIe 4.0 NVMe M.2 SSD

SKU: LSF10Z002TG8
Availability:
in stock
In stock
$305.00
$305.00 - $305.00
$305.00 - $305.00
$305.00
Inc-VAT
Delivery Truck
Free Standard Delivery or £5 Off Royal Mail and Parcelforce Delivery Available on UK Orders Over £75 - Excludes Large Items and PCs Read More
TrustScore: 4.8 / 5
★★★★★
See Our Reviews on Trustpilot

Features

  • BiCS FLASH™
  • NVMe™ 2.0d Technology
  • M.2 2280 Form Factor
  • PCIe® Gen4 x4
  • SSD Utility Management Software

Performance Made Affordable

Upgrading from a SATA SSD or PCIe® 3.0 SSD can feel like you've purchased an entirely new system. EXCERIA BASIC SSD series balance price and performance so you have enough funds left over for other.


NVMe™ Technology

Why keep using an interface that was designed for hard drives? Utilizing the latest NVMe™ 2.0d technology, EXCERIA BASIC SSDs reduce latency in your system’s I/O path between your SSD and your CPU, resulting in smooth and responsive performance.

Cutting-Edge 3D Flash Memory

Each EXCERIA SSD is built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting-edge storage experience.


SSD Utility Management Software

The SSD Utility management software was designed to help your KIOXIA drive thrive and lets you be in control of maintenance, monitoring and more!

We highly recommend you install and update to the latest version to maximize your drive’s performance and check its Percentage Life Left using the health gauge.


EXCERIA BASIC SSD Product Specifications

Capacity / dimensions

  • Capacity

    1TB, 2TB

  • Form Factor

    M.2 Type 2280-S3-M

  • Interface

    PCI Express® Base Specification Revision 4.0 (PCIe®)

  • Flash Memory type

    BiCS FLASH™ QLC

  • Interface Maximum Speed

    64 GT/s (PCIe® Gen4x4)

  • Dimension (Max: LxWxH)

    80.15 x 22.15 x 2.38 mm

  • Interface Protocol

    NVM Express™ Base Specification 2.0d

  • Weight

    5.6 g (typ.)

Performance

  • Max Sequential Read Speed

    1TB: 7,200 MB/s
    2TB: 7,300 MB/s

  • Max Sequential Write Speed

    1TB: 6,600 MB/s
    2TB: 6,800 MB/s

  • Max Random Read Speed

    1,000,000 IOPS

  • Max Random Write Speed

    1TB: 1,150,000 IOPS
    2TB: 1,250,000 IOPS

  • Endurance: TBW (Total Bytes Written)

    1TB: 300 TB
    2TB: 600 TB

  • MTTF

    1.5 million hours

Operating environment / protection performance

  • Operating Temperature

    0 ℃ (Ta) to 85 ℃ (Tc)

  • Storage Temperature

    -40 ℃ to 85 ℃

  • Certification

    RoHS compliant

  • Shock Resistance

    9.806 km/s2 {1,000 G} 0.5 ms half sine wave

  • Vibration

    25.4mm peak-to-peak (10Hz to 20Hz), 20G peak (20Hz to 2000Hz), (20min /Axis) x 3 Axis

  • Supply Voltage

    3.3 V ±5 %

  • Power Consumption

    PS3: 50 mW (typ.)
    PS4: 3 mW (typ.)

  • Power Consumption (Active)

    1TB: 3.8 W (typ.)
    2TB: 4.3 W (typ.)

Compatibility

  • Connector Type

    M.2 M key Socket

  • Target Applications

    Client desktops and laptops

Others

  • Services and Support

    Up to 5-year manufacturer's warranty

  • Performance Optimization

    TRIM, Idle Time Garbage Collection, Host Memory Buffer
