DeepCool CH260 Black Wood TG Micro-ATX Case

DeepCool CH260 Black Wood TG Micro-ATX Case

SKU: R-CH260-BKNWM0-G-1
Availability:
in stock
In stock
$132.00
$132.00 - $132.00
$132.00 - $132.00
$132.00
Inc VAT
Delivery Truck
Free Standard Delivery or £5 Off Royal Mail and Parcelforce Delivery Available on UK Orders Over £75 - Excludes Large Items and PCs Read More
TrustScore: 4.8 / 5
★★★★★
See Our Reviews on Trustpilot

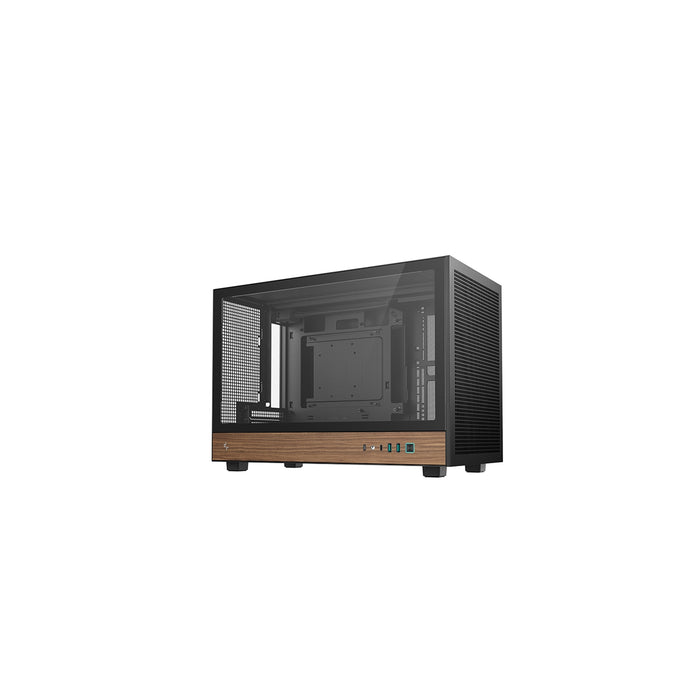

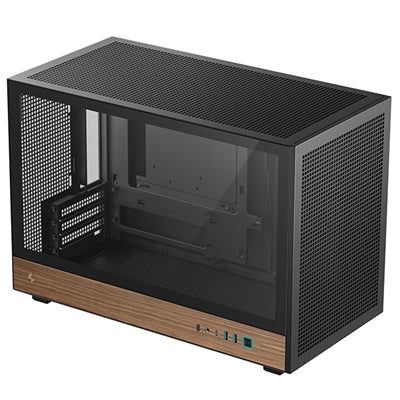

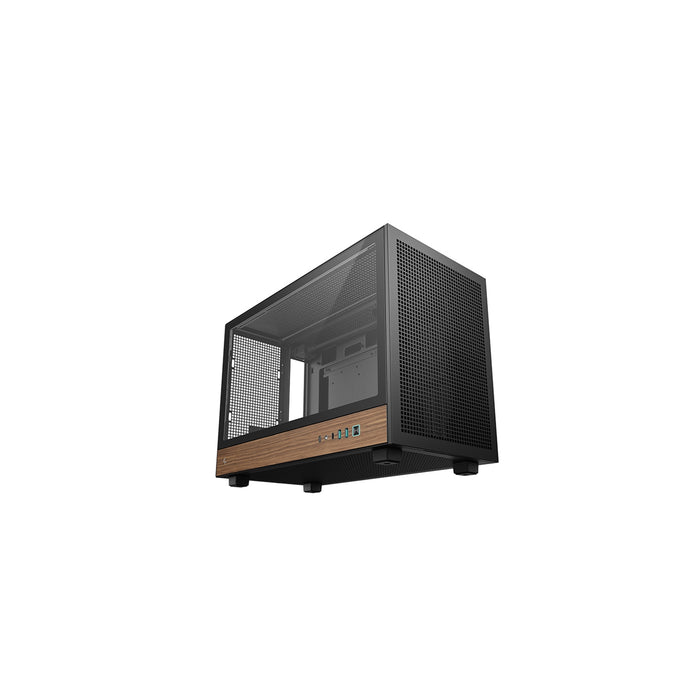

The DeepCool CH260 Wood is a micro-ATX mini tower PC case that combines a compact footprint with support for full-size components. Finished with a wood-grain I/O accent and a tempered glass side panel, it offers a natural aesthetic that blends into modern living spaces while showcasing your build. The full steel mesh panels deliver high airflow, making it suitable for performance-oriented systems.

Key Features

  • Wood-grain I/O panel for a natural, furniture-like appearance.
  • Tempered glass side panel to display internal components.
  • Full steel mesh front and top panels for optimal airflow.
  • Supports Mini-ITX, Micro-ATX, and Micro-ATX (Rear Connector) motherboards, with 29.6 mm backplane clearance for rear-connector boards.
  • Fits graphics cards up to 388 mm (413 mm without front fans).
  • ATX power supply support with a removable bracket for easier cable management.
  • Fan placements for up to six 120 mm fans and radiator support up to 360 mm on top.
  • No pre-installed fans, allowing fully custom cooling configurations.

Specifications

Attribute Value
Product Dimensions 438 × 225 × 312.5 mm (L×W×H)
Net Weight 5.3 kg
Materials ABS, SPCC, Tempered Glass
Motherboard Support Mini-ITX, Micro-ATX, Micro-ATX (Rear Connector)
Drive Bays 3.5″ × 1, 2.5″ × 1
Expansion Slots 4
CPU Cooler Height Limit 174 mm
GPU Length Limit 388 mm (413 mm without front fans)
Power Supply Type ATX PS2 (max length 150 mm)
Fan Support Front: 2×120mm; Top: 3×120mm / 2×140mm; Rear: 1×120mm
Radiator Support Top: 120/140/240/280/360mm; Rear: 120mm
Pre-Installed Fans None
Warranty 1 Year Return To Base
EAN 6933412765653

Front I/O Ports

  • 2 × USB 3.0
  • 1 × USB 3.2 Gen 2 Type-C
  • 1 × Audio/Mic combo jack
