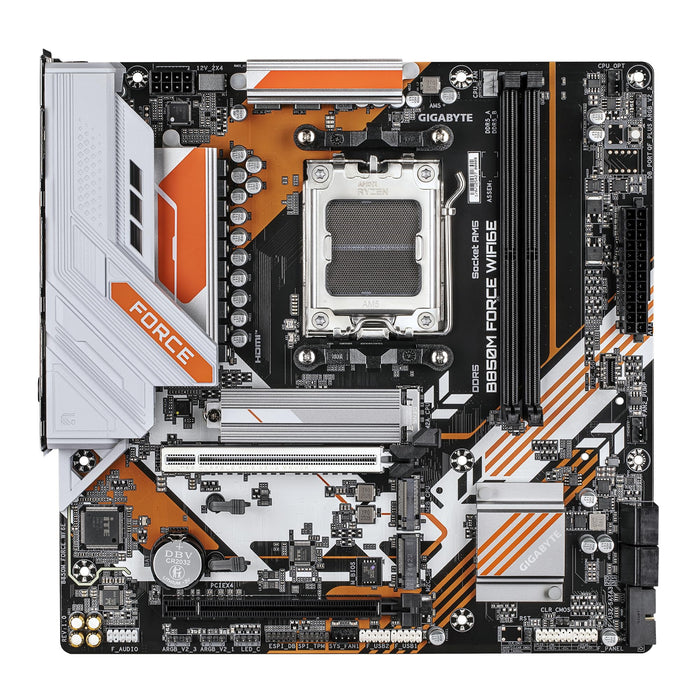

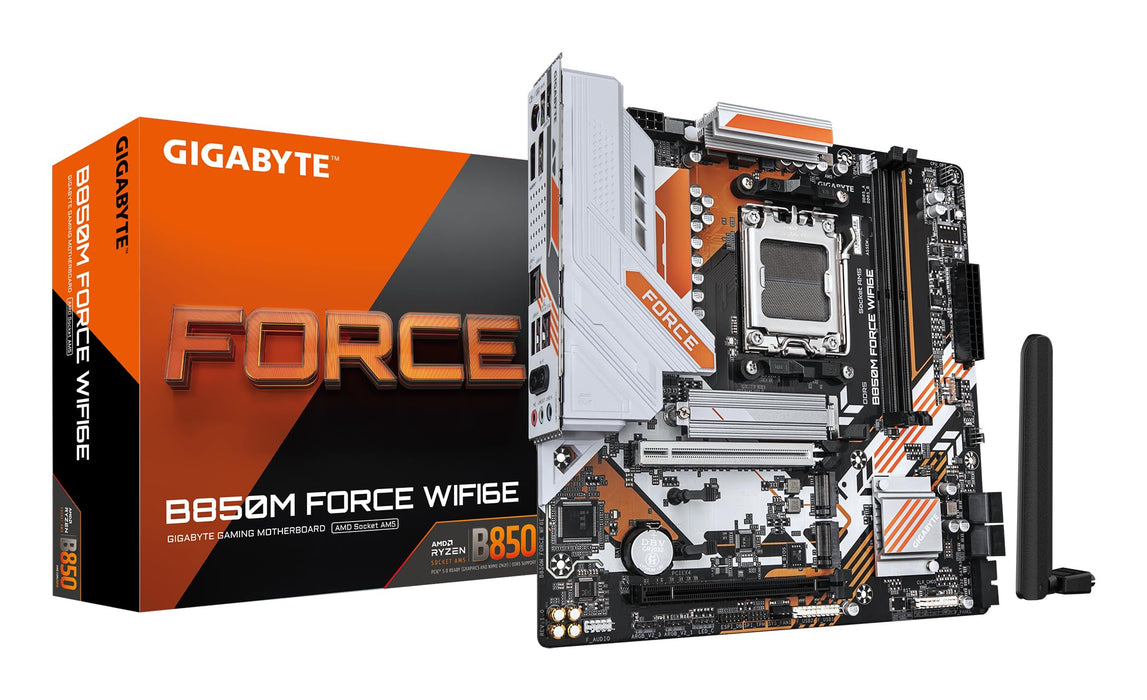

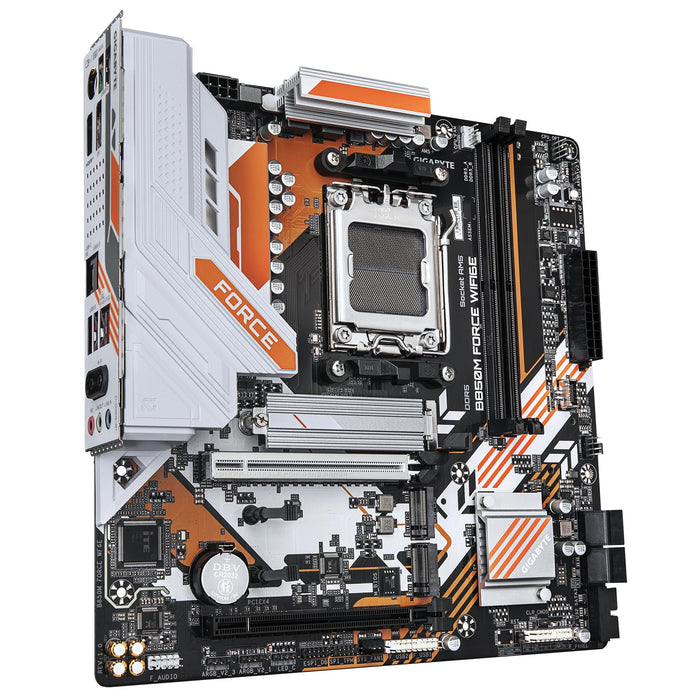

Gigabyte B850M FORCE WIFI6E Micro-ATX AM5 Motherboard

The GIGABYTE B850M FORCE WIFI6E is a Micro ATX motherboard built on the AMD B850 chipset for the AM5 socket. It provides a robust foundation for gaming and productivity systems, offering first-class support for AMD Ryzen 9000, 8000, and 7000 series processors.

Key Features

• Robust Power Delivery: Digital 8+2+2 phase VRM solution ensures stable power for high-performance CPUs.
• High-Speed Memory: Supports dual-channel DDR5 memory with speeds up to 9600MHz (OC). Compatible with AMD EXPO and Intel XMP memory profiles.
• Advanced Storage: Features three M.2 slots, including one PCIe 5.0 x4 and two PCIe 4.0 x4 slots for ultra-fast NVMe storage.
• Next-Generation Connectivity: Equipped with onboard Wi-Fi 6E (802.11ax) for wireless networking and 2.5GbE LAN for a high-speed wired connection.
• Modern Expansion: Includes a PCIe 5.0 x16 slot for graphics cards and an EZ-Latch design for easy installation.

Connectivity & I/O

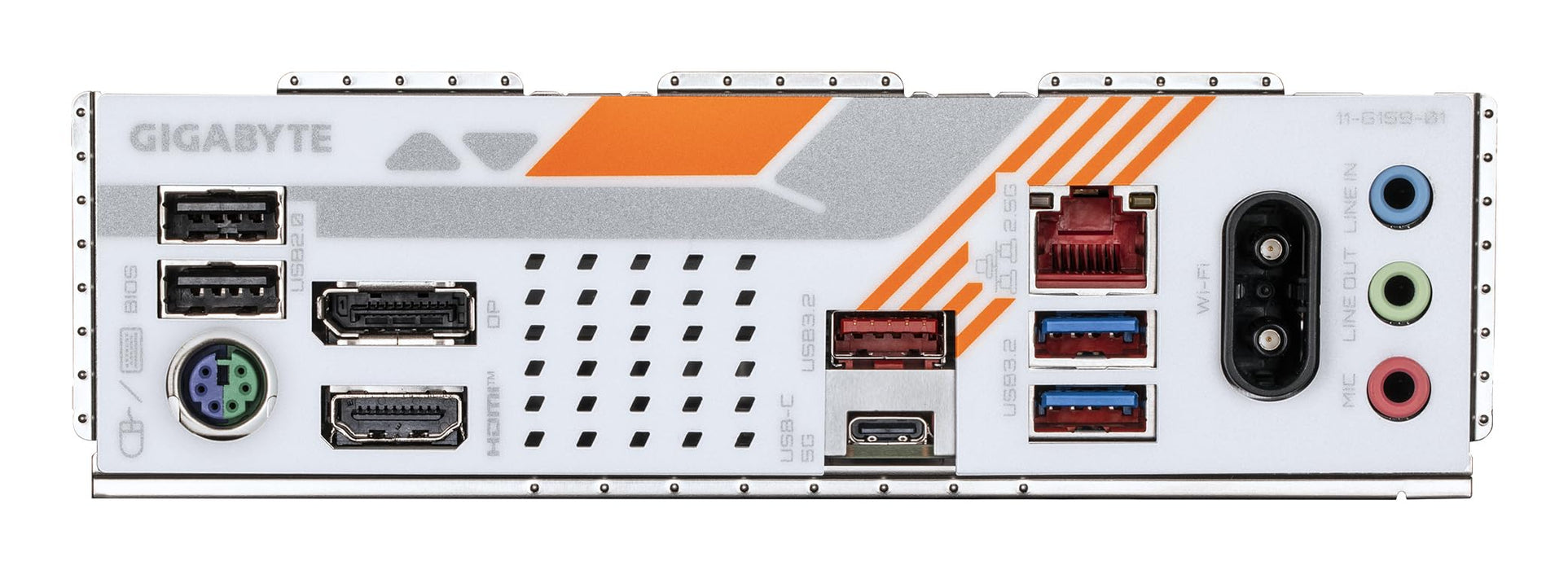

• Rear USB Ports: 1x USB 3.2 Gen 2 Type-A (red), 2x USB 3.2 Gen 1, 1x USB Type-C with USB 3.2 Gen 1, and 2x USB 2.0/1.1.
• Display Outputs: 1x DisplayPort 1.4 (supporting 4K@144Hz) and 1x HDMI 2.1 (supporting 4K@60Hz) for integrated graphics.
• Audio: Realtek ALC897 codec for high-definition 7.1-channel audio.

Compatibility

• Processor Support: AMD Ryzen 9000, 8000, and 7000 Series CPUs for the AM5 socket.
• Operating System: Supports Windows 10 and Windows 11 (64-bit).
