HAVN HS 360 VGPU Black Panoramic Glass ATX PC Case
HAVN

HAVN HS 360 VGPU Black Panoramic Glass ATX PC Case

SKU: HVN-CA-HS360-04
Out of Stock Save 11% Save 11%
$466.00
$524.00
$524.00 - $524.00
$524.00
$466.00 - $466.00
$466.00
Inc VAT
Delivery Truck
Free Standard Delivery or £5 Off Royal Mail and Parcelforce Delivery Available on UK Orders Over £75 - Excludes Large Items and PCs Read More
TrustScore: 4.8 / 5
★★★★★
See Our Reviews on Trustpilot

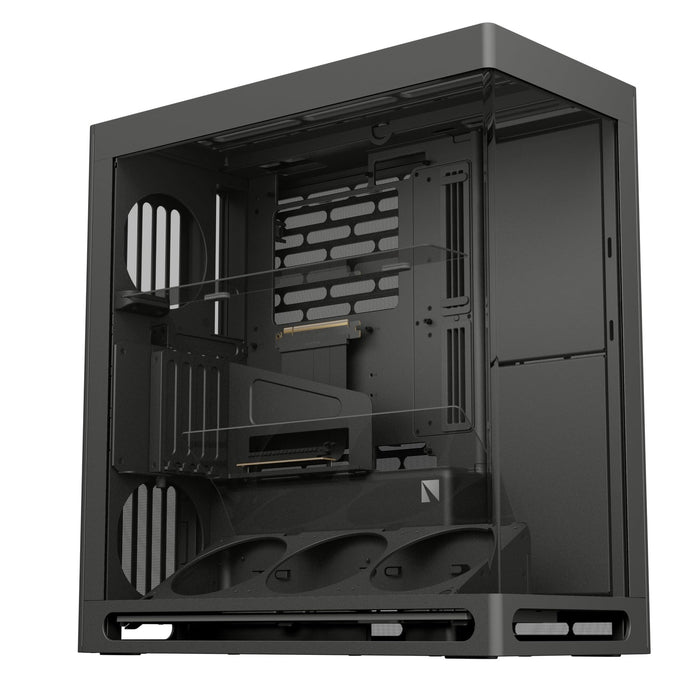

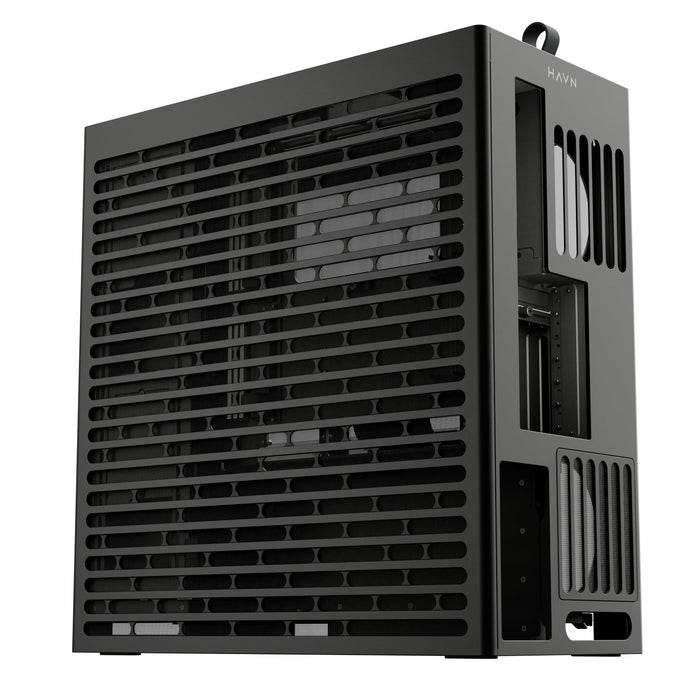

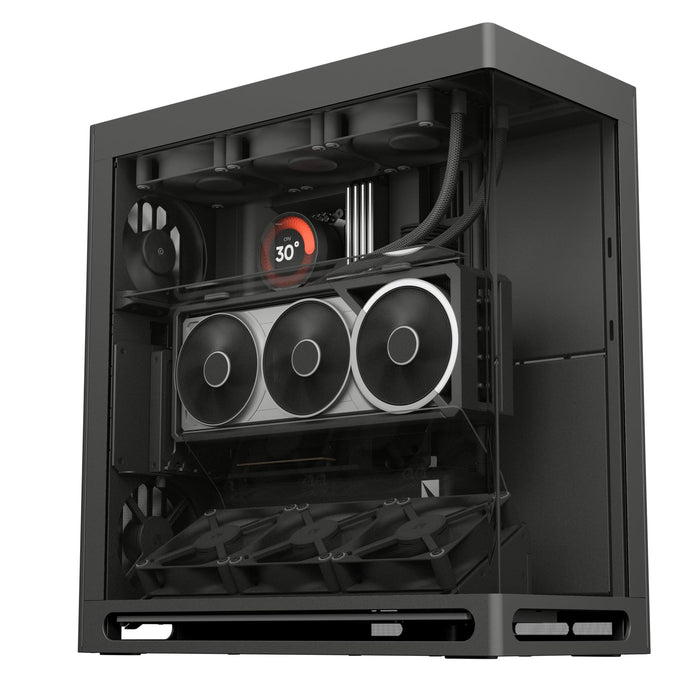

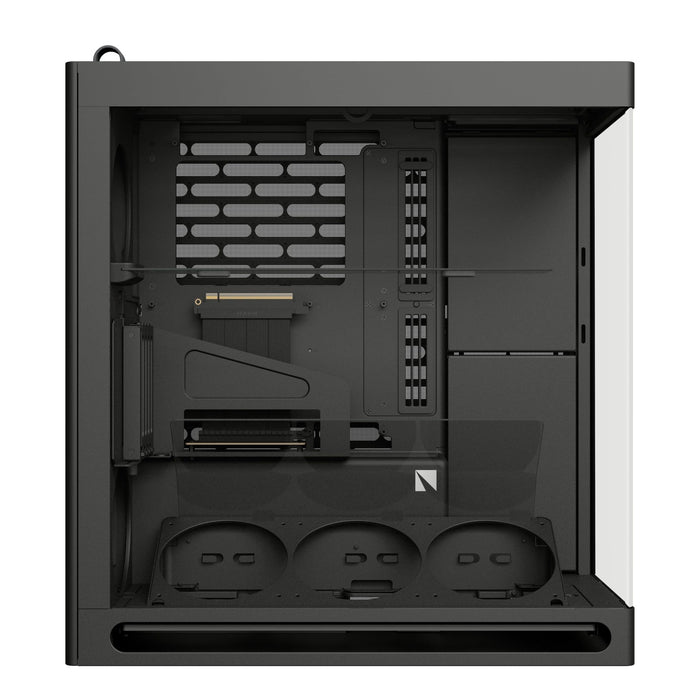

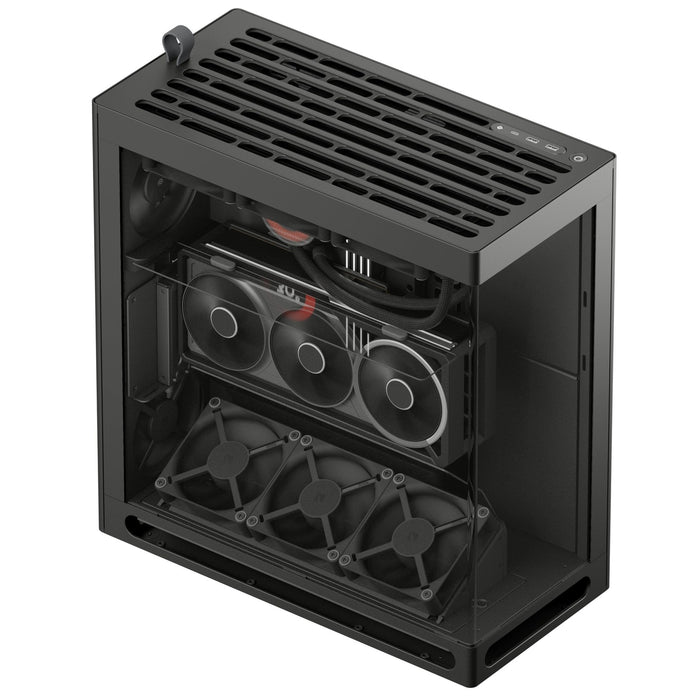

The HAVN HS 360 VGPU is a black panoramic glass ATX mid-tower case with a 61.9 L volume and a magnetic Airflow Divider for vertically mounted graphics cards. It is 19.4% smaller by volume than the HS 420 (76.8 L) and supports ATX, Back Connect ATX (BTF), Micro-ATX and Mini-ITX motherboards.

Key Features

  • Vertical GPU mounting: A PCIe 5.0 riser cable is included. The vertical mount supports graphics cards up to 430 mm long, 150 mm wide and four slots thick.
  • Magnetic Airflow Divider: Sits above the GPU.
  • GPU support pads: Three anti-vibration pads (black, dark grey and light grey) adjust along the glass support strip for different card lengths.
  • UniSheet panoramic glass: Tighter bend radius of R7.5 mm, compared with R11 mm on the HS 420.
  • Structural strength: Around 36% higher than the HS 420 in HAVN Lab testing.
  • Fan support: Up to eleven 120 mm fans across the top, right, bottom and rear. Rear fans are limited to 30 mm thickness.
  • Radiator support: 360 mm radiators at the top or right, subject to RAM and GPU clearance.
  • Back Connect ATX (BTF) support: Switchable between standard and back-connect modes.
  • Cable management: SimpliCable routing and an 8-channel PWM repeater on the cable management tray.
  • Dust filtration: Built-in filters on the top and right intakes, and removable filters on the bottom and lower rear.
  • Storage: Two storage bays included, configurable for 3.5-inch or 2.5-inch drives.

Front I/O

  • 1 × USB 3.2 Gen 2 Type-C
  • 2 × USB 3.2 Gen 1 Type-A
  • 1 × combo audio jack
  • Power button

General

ManufacturerHAVN
ModelHS 360 VGPU
ColourBlack
Form factorMid tower
Dimensions (L × W × H)490.9 × 242.1 × 520.9 mm
Volume61.9 L
Net weight13.4 kg
Warranty1 year
MaterialsSGCC sheet metal, tempered glass, ABS, nylon, zinc alloy, NdFeB magnets

Identifiers

MPNHVN-CA-HS360-04
EAN4251442514266
UPC842946114263

Motherboard and Expansion

Motherboard supportATX, BTF ATX (Back Connect), Micro-ATX, Mini-ITX
Expansion slots7 (4 usable with vertical GPU mount)

Graphics Card

MountingVertical, with PCIe 5.0 riser cable included
Maximum GPU length430 mm
Maximum GPU width150 mm
GPU slots4
Airflow DividerMagnetic, above the GPU

Cooling

Fan supportUp to 11 × 120 mm: 3 top, 3 right, 3 bottom, 2 rear
Rear fan maximum thickness30 mm
Top radiator support360 mm (65 mm thick, does not overlap RAM)
Right radiator support360 mm (58 mm thick with GPU over 300 mm; 90 mm with top AIO)
CPU cooler maximum height170 mm (depends on GPU width with vertical mount); liquid cooling recommended
CPU centre to PCIe edge connectorApprox. 200 mm (varies by board)
RAM height with AIO46 mm, plus 2.5 mm clearance
PWM repeater8 channels, on cable management tray

Power and Storage

PSU supportATX, SFX, SFX-L
Maximum PSU length230 mm (300 mm clearance)
Storage bays included2
2-bay capacity2 × 3.5-inch or 4 × 2.5-inch
1-bay capacity1 × 3.5-inch or 2 × 2.5-inch

Front I/O

USB ports1 × USB 3.2 Gen 2 Type-C, 2 × USB 3.2 Gen 1 Type-A
Audio1 × combo audio jack
Power button1

Filtration and Display

Dust filtersTop and right built in; bottom and rear bottom removable
VESA mounting75 × 75 mm / 100 × 100 mm
Display area (H × W)425 × 140 mm
Display locationFront right pillar
