HAVN HS 360 VGPU White Panoramic Glass ATX PC Case

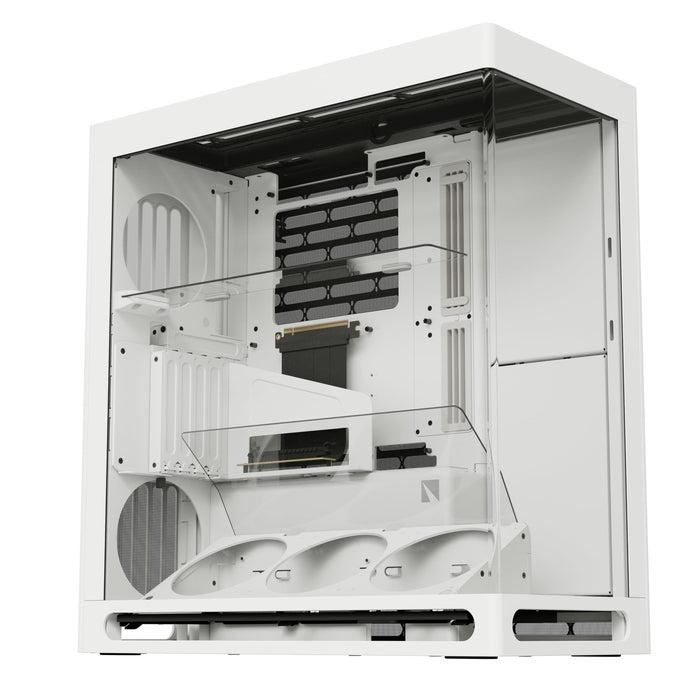

The HAVN HS 360 VGPU is a white panoramic glass mid-tower ATX case with a vertically mounted graphics card. It measures 490.9 × 242.1 × 520.9 mm, offers a 61.9 L internal volume, and supports ATX, BTF ATX (Back Connect ATX), Micro-ATX and Mini-ITX motherboards. The VGPU layout centres on a PCIe 5.0 riser and an Airflow Divider above the GPU.

Key Features

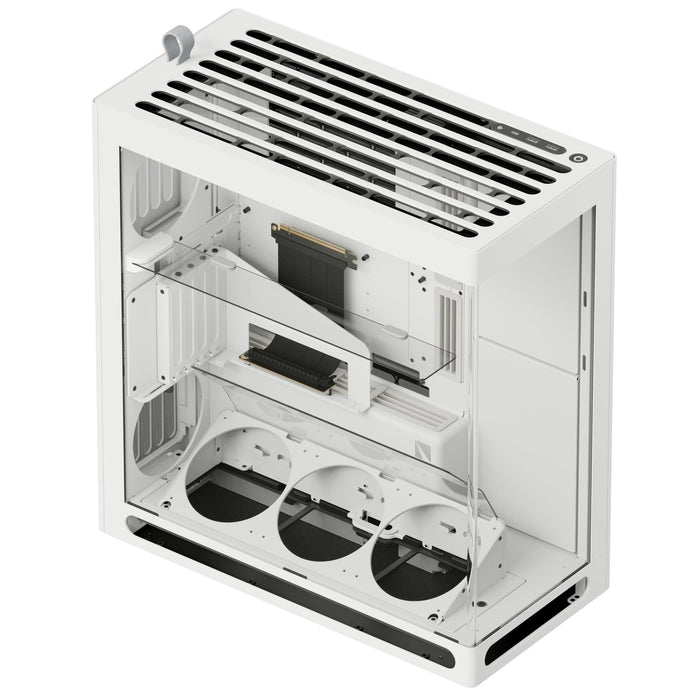

• Vertical GPU mounting: PCIe 5.0 riser cable included. Supports graphics cards up to 430 mm long, 150 mm wide and four slots thick.
• Airflow Divider: magnetic divider above the GPU, with three anti-vibration GPU pads in black, dark grey and light grey. The pads adjust along the glass support strip for different card lengths.
• Panoramic tempered glass: UniSheet panoramic glass with a tighter bend radius (R7.5 mm, against R11 mm on the HS 420), mounted magnetically with rollers.
• Back Connect support: compatible with BTF ATX motherboards, with switchable standard and back-connect modes.
• Radiator support: 360 mm radiators at the top or right. The bottom position is not supported on this model.
• Fan support: up to eleven 120 mm fans, with three at the top, three on the right, three at the bottom and two at the rear. Rear fans are limited to 30 mm thickness.
• Cable management: 8-channel PWM fan repeater located in the cable management tray, with SimpliCable routing.
• Dust filtration: built-in filters on the top and right intakes, and removable filters on the bottom and rear bottom.
• Compact footprint: 19.4% smaller and 29.5% lighter than the HS 420 (76.8 L reduced to 61.9 L).
• Structural strength: approximately 36% higher than the HS 420, based on in-house HAVN Lab testing.
• Storage: two storage bays included.

Front I/O

• 1 × USB 3.2 Gen 2 Type-C
• 2 × USB 3.2 Gen 1 Type-A
• 1 × combo audio jack
• 1 × power button
