Intel Core 7 230H on the desktop

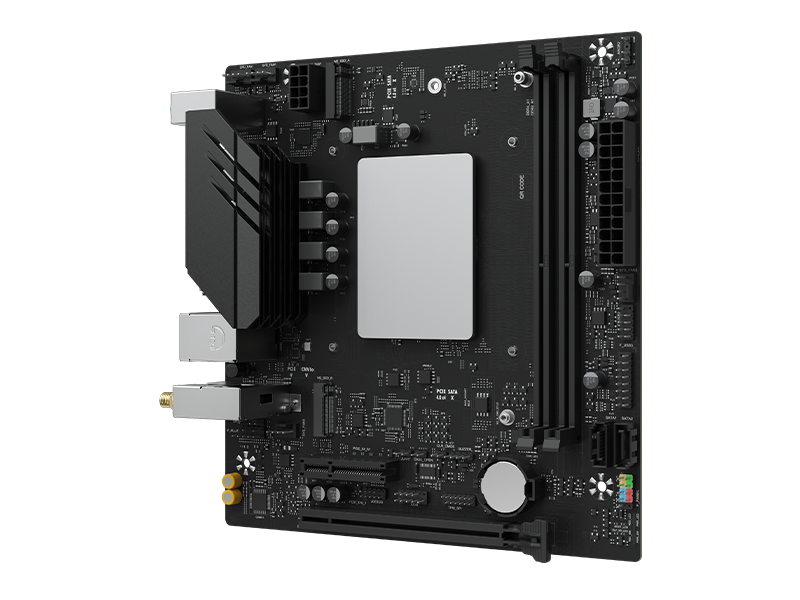

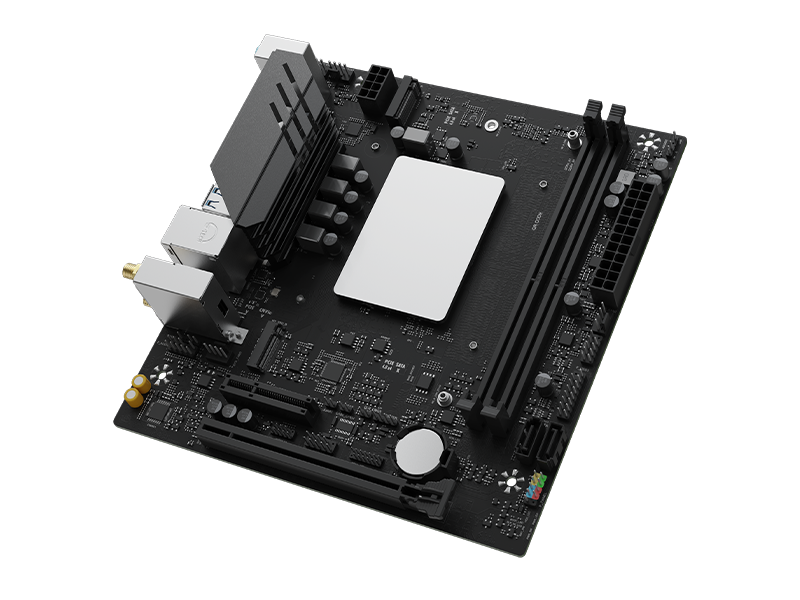

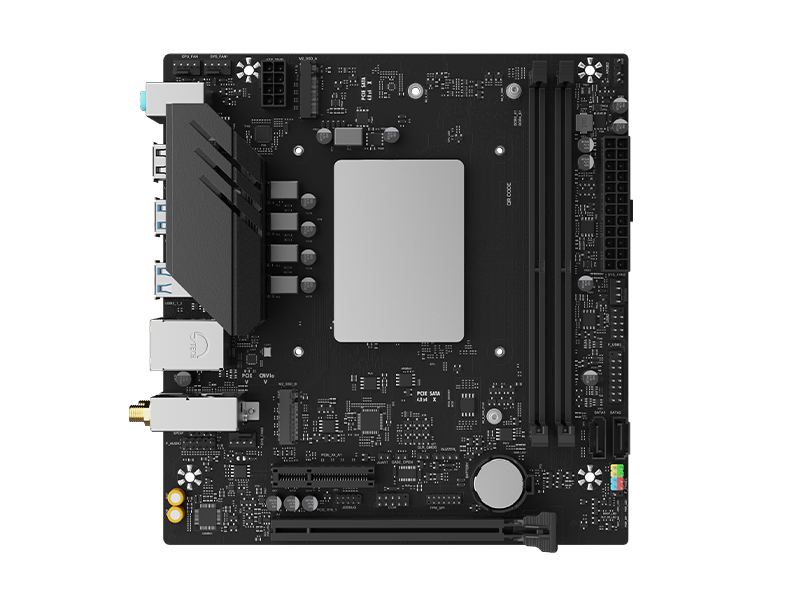

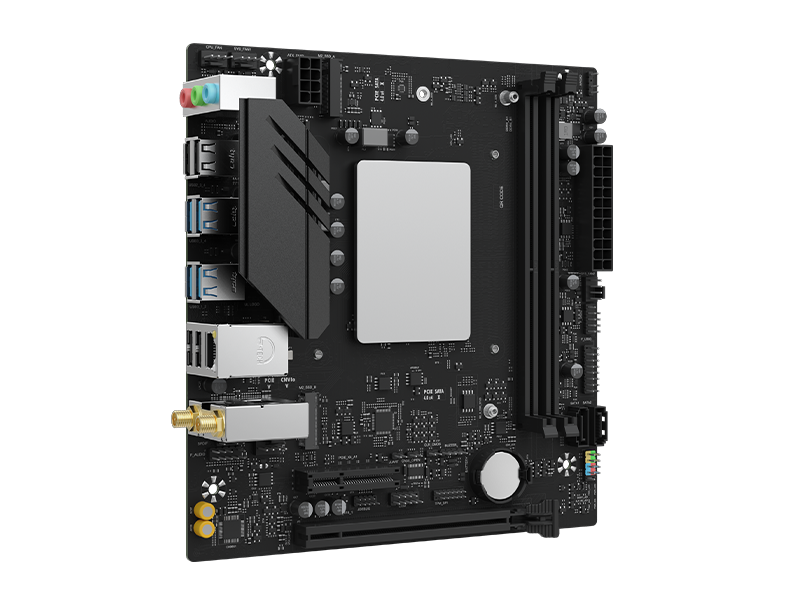

The MS-MoDT 230H D4 WIFI is a compact M-ATX motherboard with an onboard Intel Core 7 230H processor - 10 cores (6 Performance + 4 Efficient), 16 threads and up to 5.2GHz turbo. No separate CPU needed: it is a complete platform out of the box.

Key Features

  • Onboard Intel Core 7 230H - 10-core / 16-thread, up to 5.2GHz
  • 2 x DDR4 DIMM slots, up to 64GB dual-channel (3200/2933/2666/2400/2133MHz)
  • 1 x PCIe 5.0 x16 slot (x8 signal) + 1 x PCIe 3.0 x4 slot
  • 2 x M.2 M-Key slots (2242/2280, PCIe 4.0 x4/x2) + 2 x SATA 3.0
  • Dr.MOS power design with 8-pin reinforced CPU power connector
  • MTK 7902 Wi-Fi 6 + Bluetooth 5.3, Realtek 8111 Gigabit LAN, ALC897 audio
  • Up to 12 USB ports: 4 x USB 3.2 Gen2 + 4 x USB 2.0 rear, 2 x USB 3.2 Gen1 + 2 x USB 2.0 headers

Overview

Full product overview from MAXSUN:

MS-MoDT 230H D4 WIFI - marketing slide 1 MS-MoDT 230H D4 WIFI - marketing slide 2 MS-MoDT 230H D4 WIFI - marketing slide 3 MS-MoDT 230H D4 WIFI - marketing slide 4 MS-MoDT 230H D4 WIFI - marketing slide 5 MS-MoDT 230H D4 WIFI - marketing slide 6 MS-MoDT 230H D4 WIFI - marketing slide 7 MS-MoDT 230H D4 WIFI - marketing slide 8 MS-MoDT 230H D4 WIFI - marketing slide 9 MS-MoDT 230H D4 WIFI - marketing slide 10 MS-MoDT 230H D4 WIFI - marketing slide 11 MS-MoDT 230H D4 WIFI - marketing slide 12

General

ModelMS-MoDT 230H D4 WIFI
Form FactorM-ATX (190 x 180mm)
CPUOnboard Intel Core 7 230H (10-core / 16-thread, up to 5.2GHz)
Power DesignDr.MOS high-efficiency power solution with 8-pin reinforced CPU power connector

Memory

Slots2 x DIMM DDR4 (dual-channel)
Max Capacity64GB
Supported Frequencies3200 / 2933 / 2666 / 2400 / 2133 MHz

Expansion & Storage

PCIe1 x PCIe 5.0 x16 slot (x8 signal), 1 x PCIe 3.0 x4 slot
M.22 x M.2 M-Key slots (2242/2280, PCIe 4.0 x4/x2)
SATA2 x SATA 3.0 ports

Connectivity

Wi-FiOnboard MTK 7902 Wi-Fi 6
Bluetooth5.3
LANRealtek 8111 Gigabit Ethernet
AudioRealtek ALC897 codec

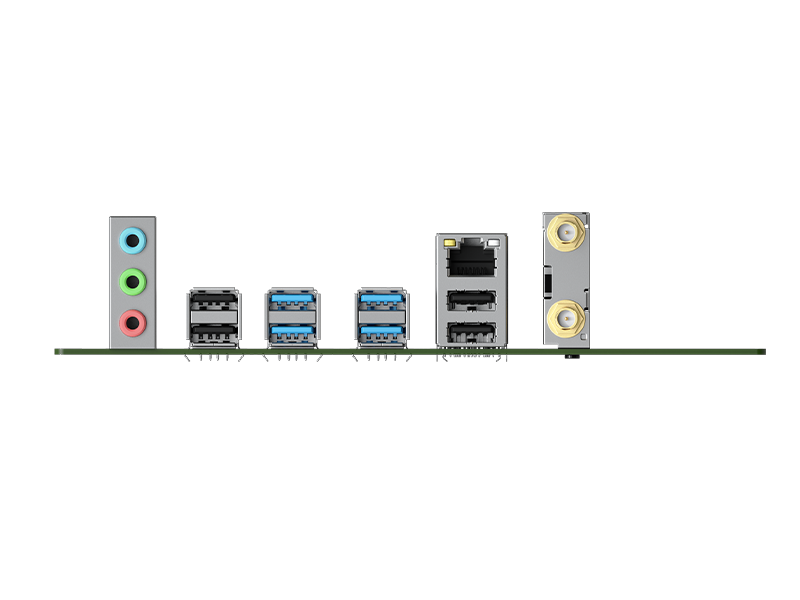

USBRear: 4 x USB 3.2 Gen2 + 4 x USB 2.0; Headers: 2 x USB 3.2 Gen1 + 2 x USB 2.0
