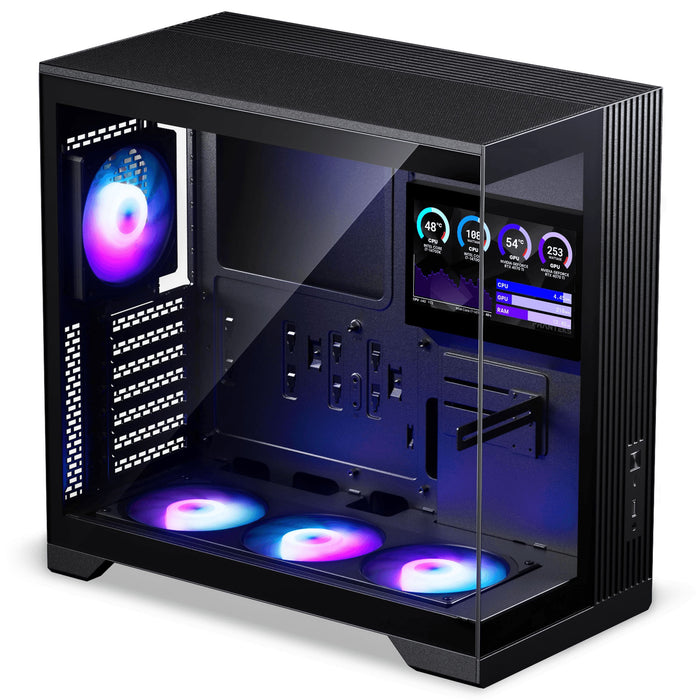

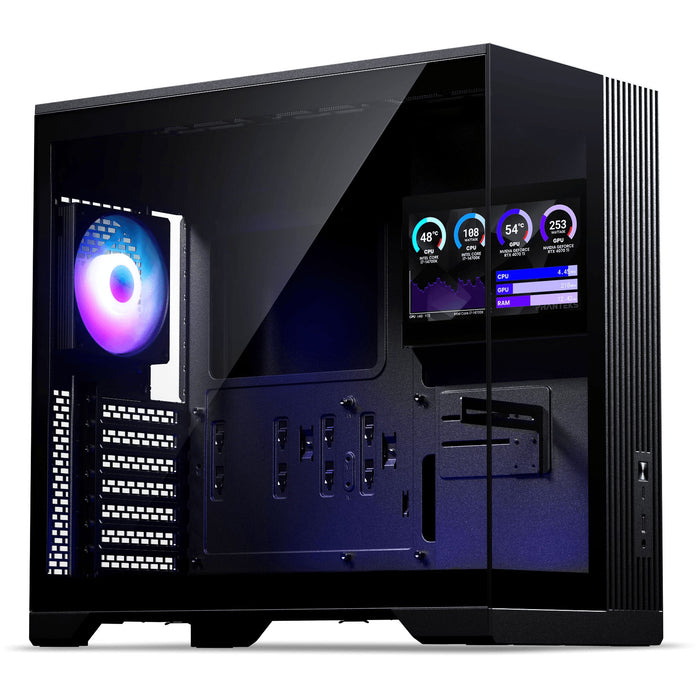

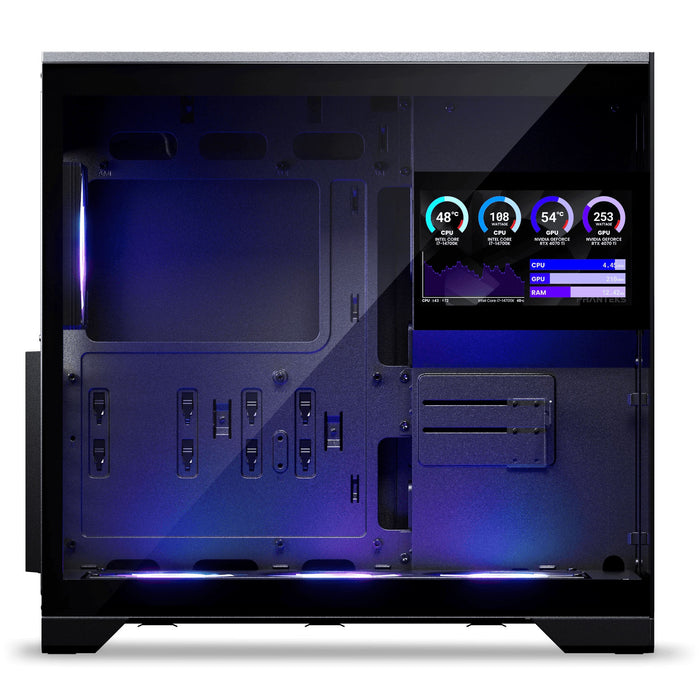

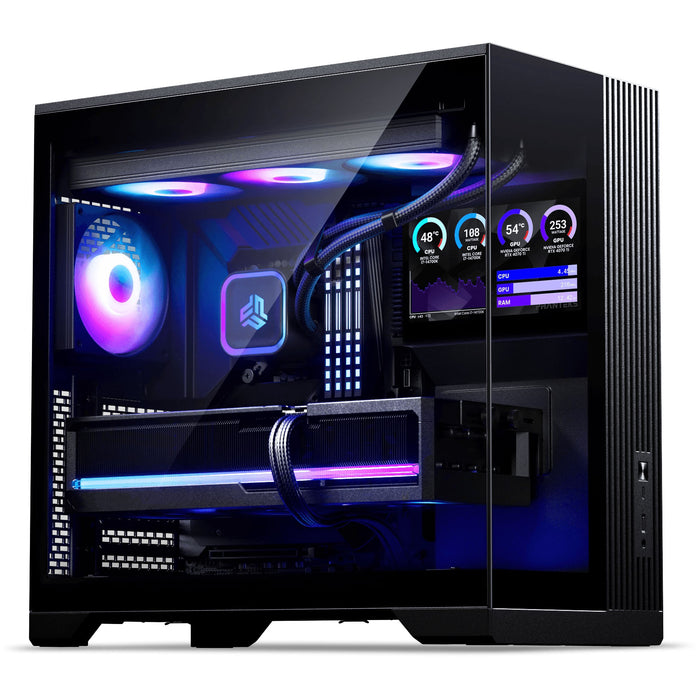

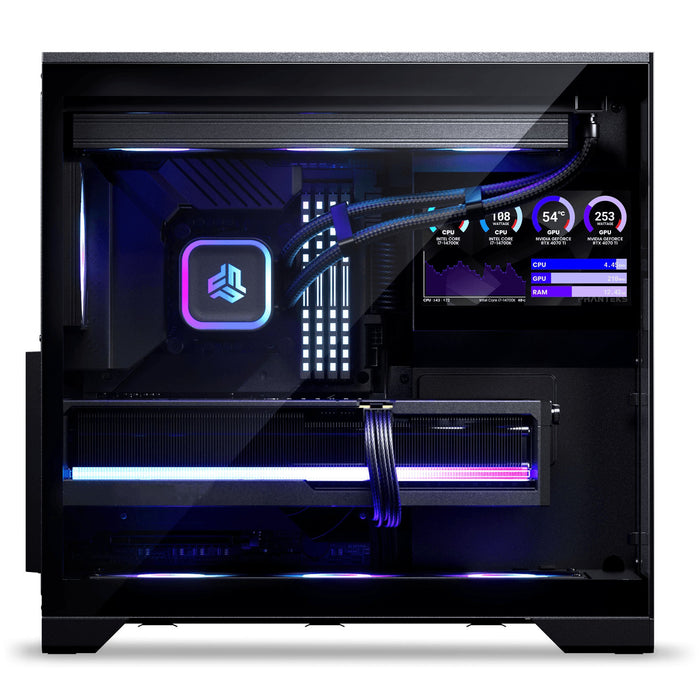

Phanteks XT V5-LCD Compact ATX Case

The Phanteks XT V5-LCD is a compact ATX mid-tower case that pairs a panoramic tempered glass design with a bottom and side-focused airflow layout. An integrated 7-inch IPS display adds a customisable visual centrepiece, while the spacious interior and broad hardware support make it a strong foundation for gaming, content creation, and enthusiast builds.

Key Features

• Compact ATX mid-tower supporting ATX, Micro-ATX, and Mini-ITX motherboards
• Panoramic tempered glass front and side panels to showcase internal components
• Pre-installed S25-120 and S25-360 ARGB fans: 1x 120mm rear plus 3x 120mm bottom/side
• Top mount for a 360mm radiator to support custom liquid-cooling loops
• Up to 7x 120mm fan mounts (3x top, 1x rear, 3x bottom)
• Integrated 7-inch IPS LCD display (1024 x 600) controlled via the Phanteks Nexlinq Windows app through an internal USB header
• Storage support for 2x 2.5" SSDs and 1x 3.5" HDD
• Cable routing channels, generous motherboard tray clearance, and dedicated tie-down points
• Removable dust filters and included GPU support bracket

Build Compatibility

• Maximum CPU cooler height: 175 mm
• Maximum GPU length: 430 mm
• Maximum GPU width: 175 mm
• Maximum PSU length: 159 mm (ATX form factor)
• 7 expansion slots

Front I/O

• 1x USB 3.2 Type-C
• 1x USB 3.0 Type-A
• 1x combined 3.5 mm audio output / input jack
